Description

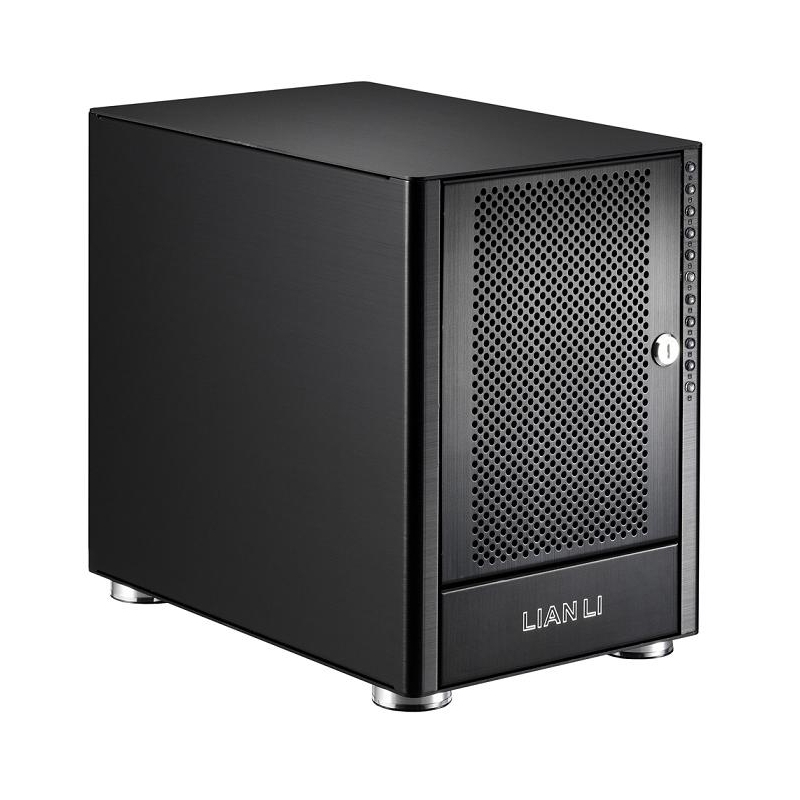

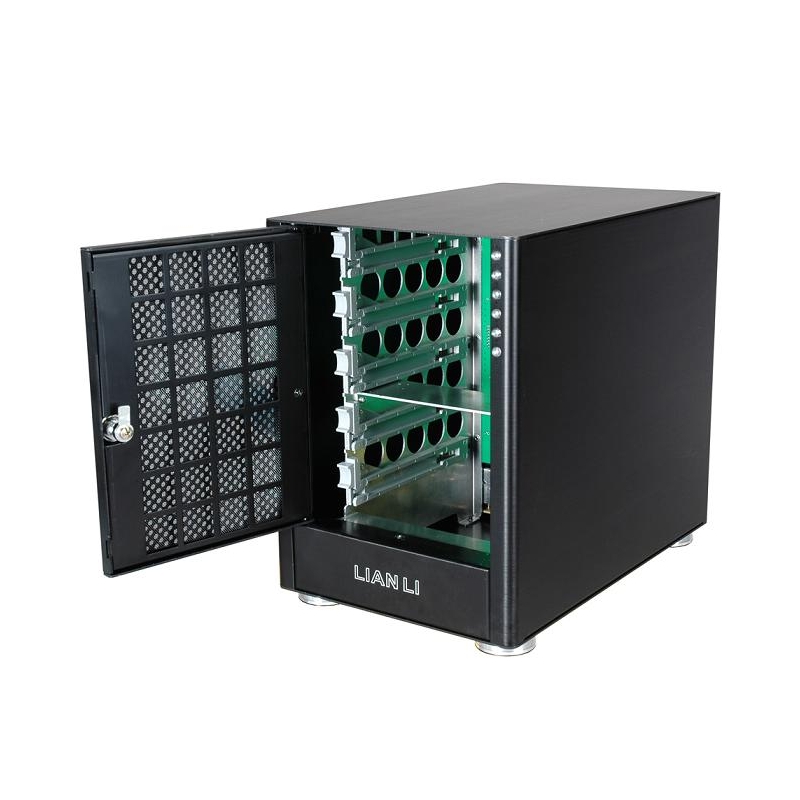

Model: EX-50
e-SATA interface Support Port Multiplier�
Support Hardware RAID 0 / 1 / 3 / 5 / 10 / JBOD / CLONE
Feature:
• Supports 1-port 3.0Gbps e-SATA II interface
• Supports 5-port 3.0Gbps SATA II interface
• Automatically speed negotiation for 3.0Gbps or 1.5Gbps
• Supports Native Command Queue (NCQ)
• Supports Hot-Plug
RAID:
• Fully hardware-accelerated RAID Engine
• No driver, BIOS or software required for RAID operation
• Independent of device SATA port connection sequence
• Supports RAID levels: 0 / 1 / 3 / 5 / 10 / JBOD
• RAID 3 / 5 write-back cache to enhance performance
• SATA In-band application interface
• Supports more than 2Tera Bytes RAID drive
• Supports on-line command based bad sector recovery
• Supports on-line Auto-Rebuild
• Rebuild speed: 200GB/hour
• Rebuild proceed continuously between power cycling
• Supports Hot Spare on RAID
• Supports various RAID configuration and monitoring method
Specification:
HDD Type
3.5” SATA I/II（1.5Gbps ~ 3.0Gbps）
HDD Amount
5max
Interface
e-SATA (3 Gbps, auto-negotiates to 1.5 Gbps)
Raid Mode
Supports RAID levels: 0 / 1 / 3 / 5 / 10 / JBOD
Running RAID functions With Silicon Image SIL3132 PCI Express to 1-Port Serial ATA II Host Controller Card (Included )
Raid Control Mode
Hardware / Software AP
Features
Hot Plug / hot swap, Plug and play functionality
Supports 2TB RAID drive, maximum 10TB
Fan:
140mm cooling fan @1000RPM Noise: 22dBA
LED
LED states for each HDD-R/W；each HDD-Link
AC Adapter
120W Adapter / 12V/10A No-Fan (Silent)
Package Contents eSATA Cable / Power Adapter / Software AP CD / User Manual
Dimensions
175mm x 235mm x 260mm (W, H, D )
System requirement
PC / Windows Systems:
Intel Pentium III 500 MHz equivalent or faster
Windows XP, 2003 Server or Windows Vista with latest Service Packs
64MB od RAM minimum
250MB of free disk space
For eSATA speeds , the system must support Port Multiplier specification
O,S List:
Windows 98/SE/ME/2000/XP/Vista/Server2003/Server2008
Mac book 10.5.5 / Mac Pro 10.5.5 / Mac G5 10.5.5 ( or later)
Red Hat Enterprise 5 32bit / Fedora code 7~10 32bit
